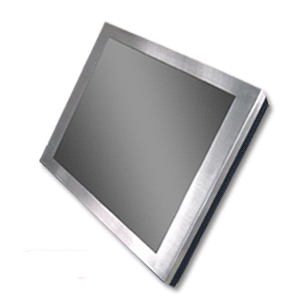

 PT-170PF |
* 17" Fanless Panel PC
* 5W Resistive Touch
* Compact & Slim Design
* Built in Speaker
|
|
|
- Specification

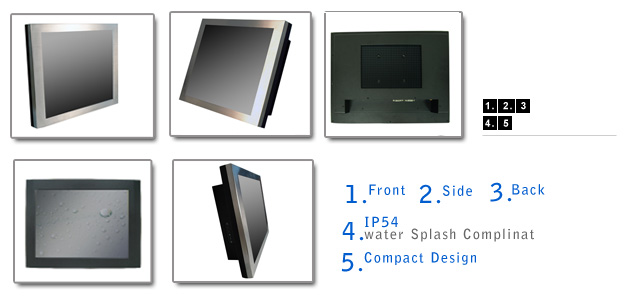

- Feature & Photo

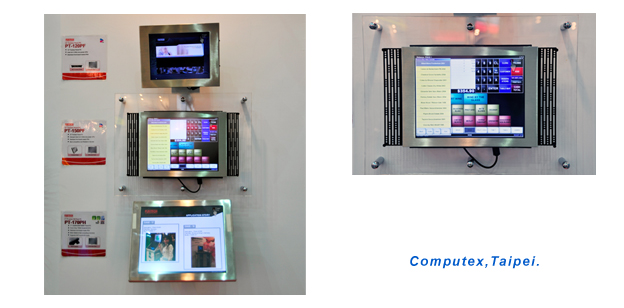

- Application
| Type |
System |
| Product Name |
PT-170PF |
| Monitor Size |
17"; 1280x1024 |
| Touch Panel |
Taiwan 5-W Resistive |
| CPU |
Intel ULV 1GHz |
| Chipset |
Intel 852GM+ICH4 |
| Memory |
512 MB DDR upto 1GB |
| Storage Device |
40GB, 2.5" IDE HDD |
| Lan |
Dual 10/100 Base-T Ethernet |
| VGA Port |
1 |
| Serial Port |
3 |
| Parallel Port |
|
| USB Port |
4 |
| RJ-45 |
2 |
| Audio Jack |
1 |
| Expansion Slot |
|
| Power Supply |
External 60W Adapter |
| Dimension |
327(H)x416(w)x89.4(D)mm |
| Optional Device |
* MSR
* ELO 5W resistive touch
* WiFi b+g with antenna
|
| |
|
|
