 PT-120/150/170/190 PFN270 |

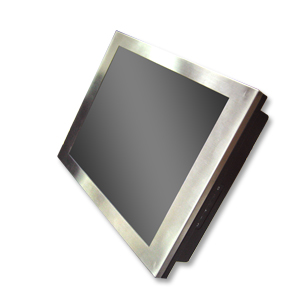

* True Fanless ATOM-N270 Panel PC
* IP65 in Front & Side Frame
* Easy Install HDD Tray
* Anti-vibration HDD kit
* Compact & Slim Design |
|
|
- Specification

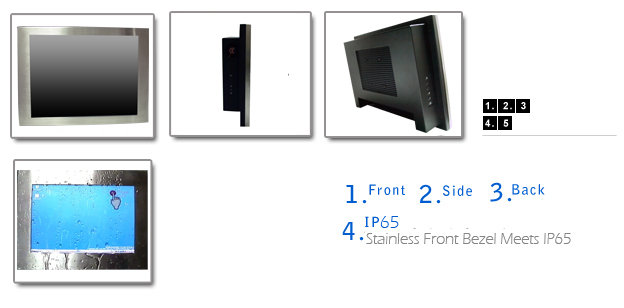

- Feature & Photo

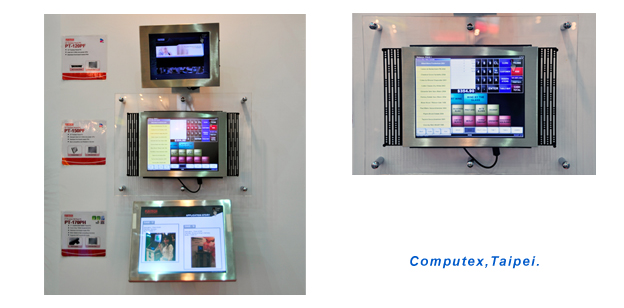

- Application
- View 3D Animation
| Type |
System |
| Product Name |
PT-120/150/170/190 PFN270 |
| Monitor Size |
12" 15" 17" 19" |
| Touch Panel |
Taiwan 5W Resistive Touch |
| CPU |
Intel ATOM N270-1.6GHz |
| Chipset |
Intel945GSE + ICH7M |
| Memory |
1GB DDRII upto 2GB |
| Storage Device |
80GB 2.5" SATA HDD |
| Lan |
Dual 10/100 Base-T Ethernet |
| VGA Port |
1 |
| Serial Port |
3 |
| Parallel Port |
1 |
| USB Port |
4 |
| RJ-45 |
2 |
| Audio Jack |
|
| Expansion Slot |
|
| Power Supply |
60W |
| Dimension |
12"inch 330 x 380 x 254.6(mm) |
| Optional Device |
MSR
ELO 5W Resistive Touch
WiFi b+g with Antenna
|
| |
|
|
