 PT-170PFN270 |
* True Fanless ATOM-N270 Panel PC
* IP65 in Front & Side Frame
* Easy Install HDD Tray
* Anti-vibration HDD kit
* Compact & Slim Design |
|
|
- Specification

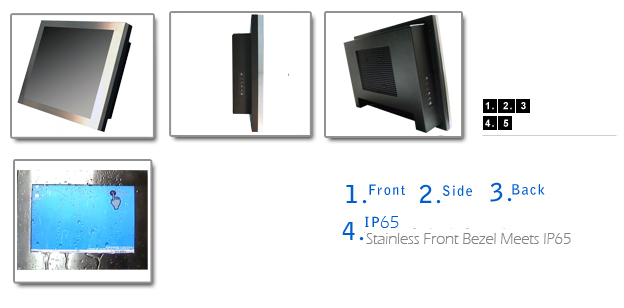

- Feature & Photo

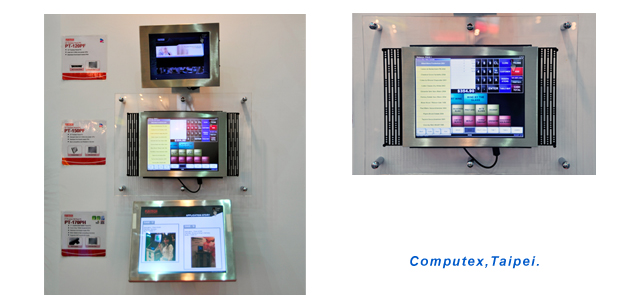

- Application
| Type |
System |
| Product Name |
PT-170PFN270 |
| Monitor Size |
17"; 1280x1024 |
| Touch Panel |
Taiwan 5W Resistive Touch |
| CPU |
Intel ATOM N270-1.6GHz |
| Chipset |
Intel945GSE + ICH7M |
| Memory |
1GB DDRII upto 2GB |
| Storage Device |
80GB 2.5" SATA HDD |
| Lan |
Dual 10/100 Base-T Ethernet |
| VGA Port |
1 |
| Serial Port |
3 |
| Parallel Port |
1 |
| USB Port |
4 |
| RJ-45 |
2 |
| Audio Jack |
60W |
| Expansion Slot |
|
| Power Supply |
|
| Dimension |
327(H)x416(w)x89.4(D)mm |
| Optional Device |
MSR
ELO 5W Resistive Touch
WiFi b+g with Antenna
|
| |
|
|
EN
